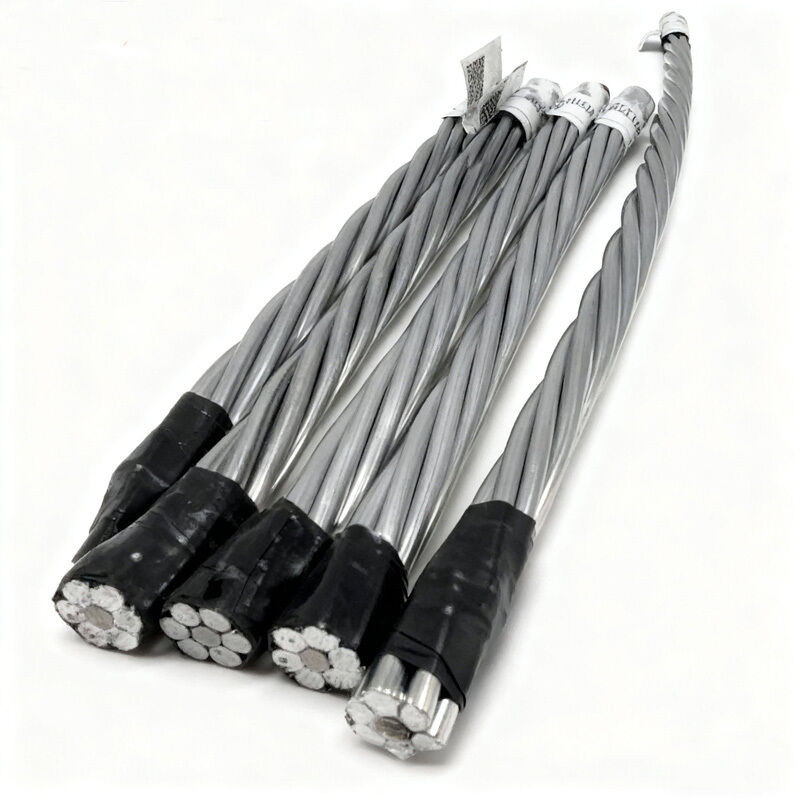

ASTM B549 Quail/AW ACSR Conductor – 133.1 MCM (2/0 AWG) Aluminum-Clad Steel Reinforced for Overhead Lines

ASTM B549 Quail/AW ACSR Conductor – 133.1 MCM (2/0 AWG) Aluminum-Clad Steel Reinforced for Overhead Lines

Specafication:

Standard:

ACSR Bare conductor meets or exceeds the following specifications:

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors

• AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced

• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced

• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors

• GB 1179 Round wire concentric lay overhead electrical stranded conductors

Note:We also can produce based on other international standards, such as IEC,ASTM etc.

Features:

1. Standard Quail Size – 133.1 MCM (2/0 AWG) provides a well‑established current rating and sag characteristic for predictable line design.

2. ASTM B549 Compliance – Guarantees precise stranding, wire diameters, and aluminum cladding thickness as specified by the American standard.

3. Aluminum-Clad Steel Core – The steel reinforcement is entirely encapsulated in aluminum, preventing rust creepage and eliminating bimetallic corrosion.

4. Reduced AC Losses – The non‑magnetic aluminum cladding lowers hysteresis and eddy current losses compared to ordinary galvanized steel core designs.

5. Quail Stranding Pattern – The specific layer arrangement ensures a smooth outer surface, reducing wind noise and corona discharge on overhead lines.

Applications:

1. Overhead Primary Distribution – Suitable for 5kV to 35kV class lines in suburban and industrial zones.

2. Coastal Utility Networks – Ideal for seaside installations where salt spray rapidly degrades conventional galvanized ACSR.

3. Rural Secondary Feeders – Connecting small transformer stations to clusters of farms or rural businesses.

4. Wind-Prone Areas – The Quail conductor’s strength and light weight allow longer spans between poles in open terrain.

5. Upgrading Existing Lines – Direct replacement for older 2/0 copper or ACSR conductors to increase corrosion resistance without changing hardware.

Packaging Details

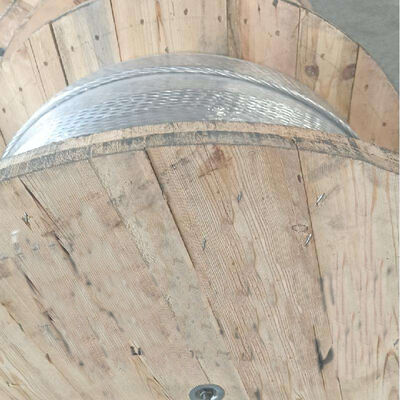

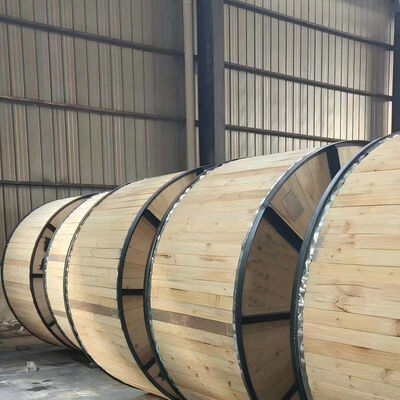

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
